XB-IMG-174832
Xenbase Image ID: 174832
|

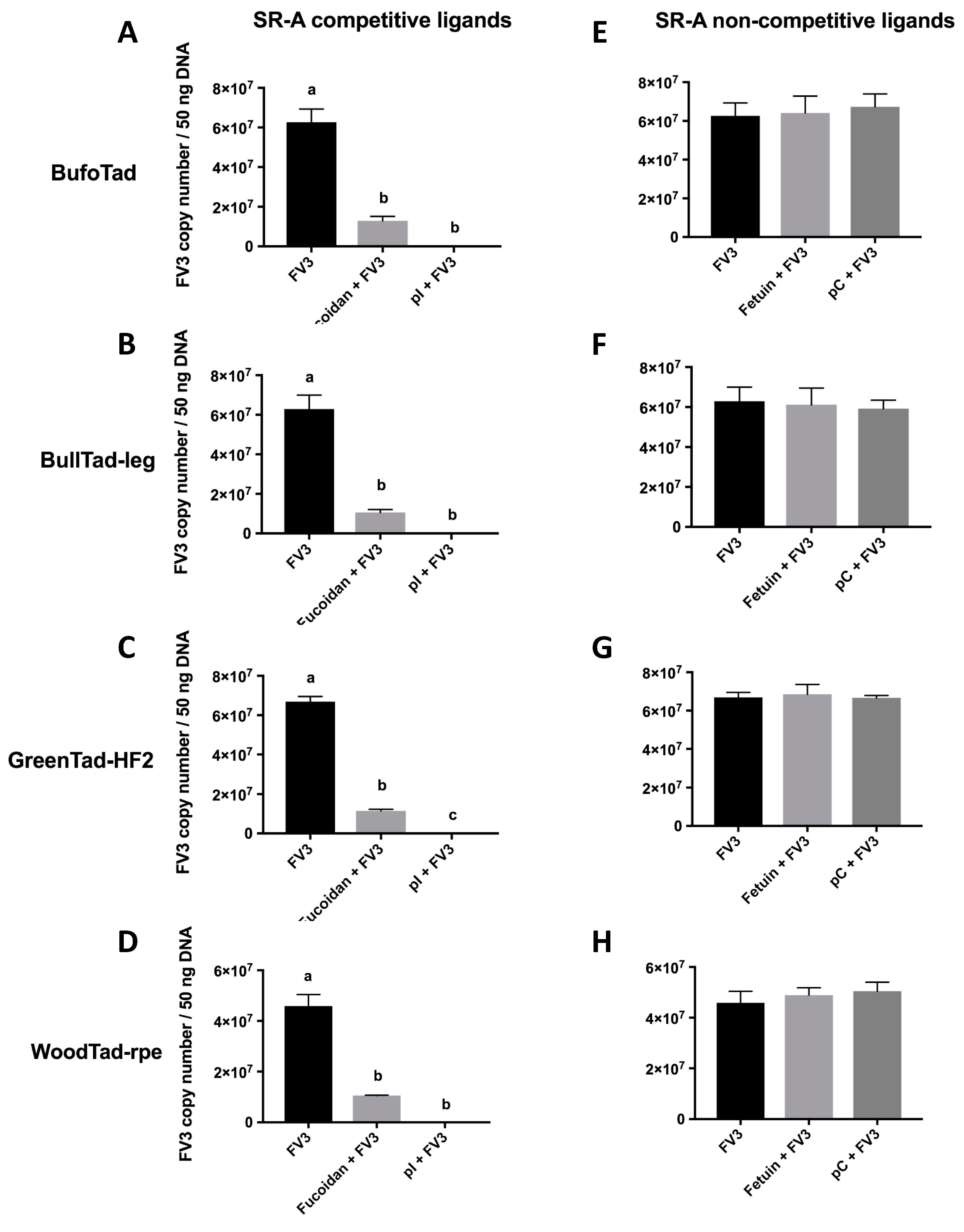

Figure 1. Effects of SR-A competitive and non-competitive ligands on the cell-associated FV3 loads
in four tadpole cell lines. The American toad BufoTad cell line, bullfrog BullTad-leg cell line, green
frog GreenTad-HF2 cell line, and wood frog WoodTad-rpe cell line were pre-treated with 250 g/mL of
the SR-A competitive ligands (fucoidan, poly inosine (pI)) (AâD) or non-competitive ligands (fetuin,
poly cytosine (pC)) (EâH) for 30 min. FV3 was added at an multiplicity of infection MOI of 1.0 for 2 h.
The FV3 DNA viral loads were determined by absolute qPCR. Data are presented as means SEM
(n = 3). Statistical analysis using a one-way ANOVA test and Tukeyâs multiple comparisons test with
95% confidence intervals was performed. p values less than 0.05 are considered statistically significant.
Groups with different letters are statistically different from one another. Image published in: Vo NTK et al. (2019) © 2019 by the authors. Creative Commons Attribution license Larger Image Printer Friendly View |
