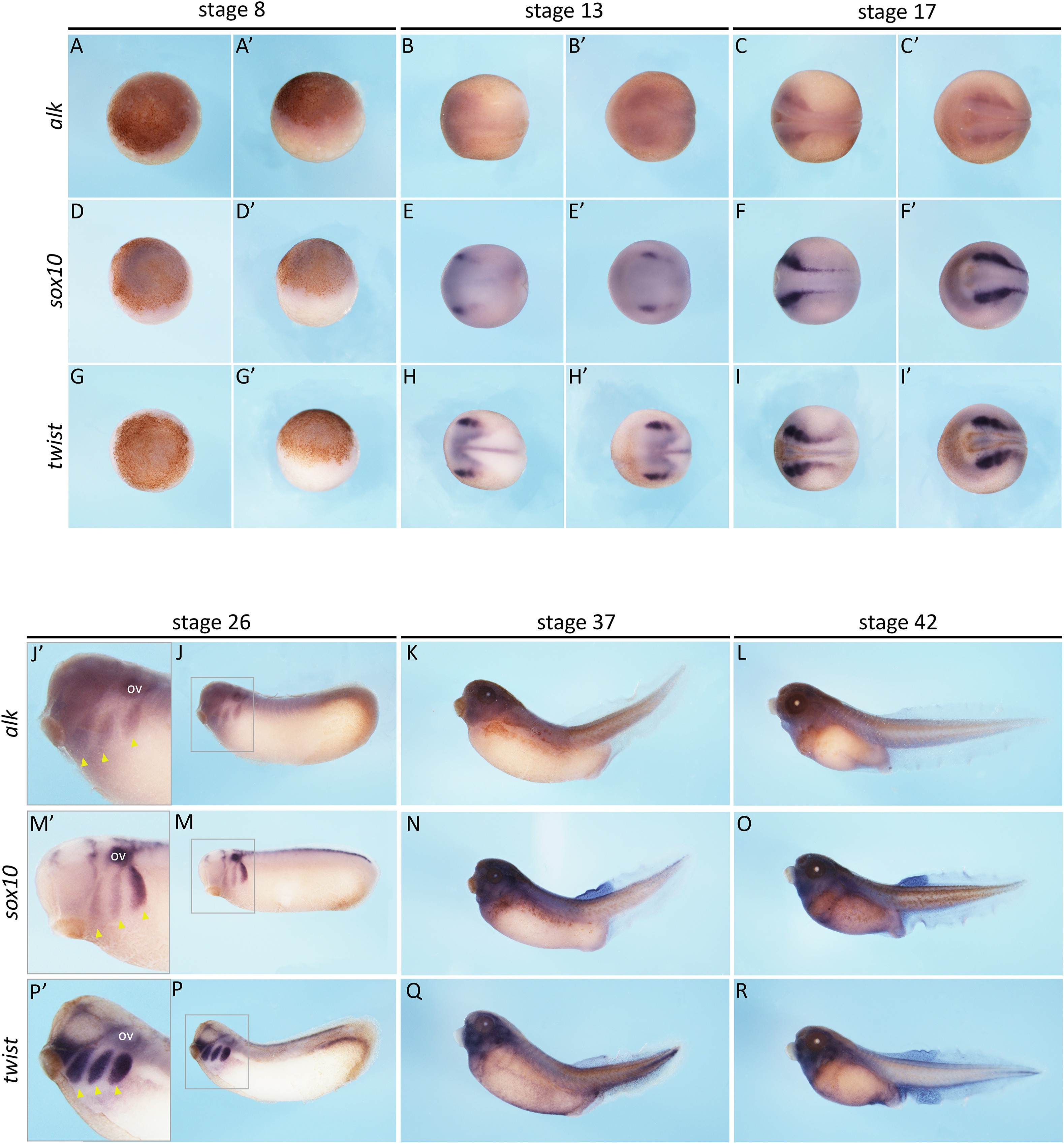

Fig. 2. alk expression pattern in Xenopus laevis. mRNA in situ hybridisation for alk and neural crest markers, sox10 and twist, in Xenopus laevis embryos at stages 8, 13, 17, 26, 37 and 42 (Nieuwkoop and Faber, 1994). Animal (A, D and G) and lateral (A′, D′ and G′) view of stage 8 embryos (alk n = 11, sox10 n = 5, twist n = 4). Dorsal (B, E and H) and anterior (B′, E′ and H′) view of stage 13 embryos (alk n = 12, sox10 n = 4, twist n = 2). Dorsal (C, F and I) and anterior (C′, F′ and I′) view of stage 17 embryos (alk n = 7, sox10 n = 4, twist n = 4). Lateral view (J, M and P) of stage 26 embryos and zoomed insets (grey rectagles) of embryos heads (J′, M′ and P′), showing otic vesicles (OV) and neural crest streams (yellow arrowheads) (alk n = 8, sox10 n = 7, twist n = 5). Lateral view (K, N and Q) of stage 37 embryos (alk n = 10, sox10 n = 7, twist n = 5) and stage 42 embryos. Lateral view (L, O and R) of stage 42 embryos (alk n = 11, sox10 n = 5, twist n = 7). Image published in: Moreno MM et al. (2021) Image reproduced on Xenbase with permission of the publisher and the copyright holder. Creative Commons Attribution license Gene Synonyms Species Stage(s) Tissue alk.L LOC108716096, LOC108717382, xalk X. laevis Throughout NF stage 13 neural plate border sox10.L X. laevis Throughout NF stage 13 neural plate border twist1.L twist, twist1-a, twist1-b, X-twi, Xtwi, Xtwist X. laevis Throughout NF stage 13 neural plate border pre-chordal neural plate alk.L LOC108716096, LOC108717382, xalk X. laevis Throughout NF stage 17 neural plate border neural fold sox10.L X. laevis Throughout NF stage 17 neural plate border neural fold anterior neural fold cranial neural crest twist1.L twist, twist1-a, twist1-b, X-twi, Xtwi, Xtwist X. laevis Throughout NF stage 17 neural plate border cranial neural crest neural fold neural groove alk.L LOC108716096, LOC108717382, xalk X. laevis Throughout NF stage 26 otic vesicle somite cranial neural crest mandibular crest hyoid crest branchial crest sox10.L X. laevis Throughout NF stage 26 otic vesicle brain cranial neural crest mandibular crest hyoid crest anterior branchial crest posterior branchial crest spinal cord roof plate twist1.L twist, twist1-a, twist1-b, X-twi, Xtwi, Xtwist X. laevis Throughout NF stage 26 otic vesicle spinal cord cranial neural crest mandibular crest hyoid crest branchial crest cranial nerve forebrain alk.L LOC108716096, LOC108717382, xalk X. laevis Sometime during NF stage 37 and 38 to NF stage 42 somite head eye dorsal trunk tail sox10.L X. laevis Sometime during NF stage 37 and 38 to NF stage 42 head dorsal trunk eye spinal cord roof plate tail twist1.L twist, twist1-a, twist1-b, X-twi, Xtwi, Xtwist X. laevis Sometime during NF stage 37 and 38 to NF stage 42 head eye dorsal trunk tail tip tail anterior foregut alk.L LOC108716096, LOC108717382, xalk X. laevis Throughout NF stage 8 sox10.L X. laevis Throughout NF stage 8 twist1.L twist, twist1-a, twist1-b, X-twi, Xtwi, Xtwist X. laevis Throughout NF stage 8 Image source: Published Larger Image Printer Friendly View
