J Biomed Biotechnol
2010 Jan 01;2010:134764. doi: 10.1155/2010/134764.
Show Gene links
Show Anatomy links
Identification, characterization, and effects of Xenopus laevis PNAS-4 gene on embryonic development.
Yan F, Ruan XZ, Yang HS, Yao SH, Zhao XY, Gou LT, Ma FX, Yuan Z, Deng HX, Wei YQ.
???displayArticle.abstract???
Apoptosis plays an important role in embryonic development. PNAS-4 has been demonstrated to induce apoptosis in several cancer cells. In this study, we cloned Xenopus laevis PNAS-4 (xPNAS-4), which is homologous to the human PNAS-4 gene. Bioinformatics analysis for PNAS-4 indicated that xPNAS-4 shared 87.6% identity with human PNAS-4 and 85.5% with mouse PNAS-4. The phylogenetic tree of PNAS-4 protein was also summarized. An analysis of cellular localization using an EGFP-fused protein demonstrated that xPNAS-4 was localized in the perinuclear region of the cytoplasm. RT-PCR analysis revealed that xPNAS-4, as a maternally expressed gene, was present in all stages of early embryo development. Whole-mount in situ hybridization showed that xPNAS-4 was mainly expressed in ectoderm and mesoderm. Furthermore, microinjection of xPNAS-4 mRNA in vivo caused developmental defects manifesting as a small eye phenotype in the Xenopous embryos, and as a small eye or one-eye phenotype in developing zebrafish embryos. In addition, embryos microinjected with xPNAS-4 antisense morpholino oligonucleotides (MOs) exhibited a failure of head development and shortened axis.

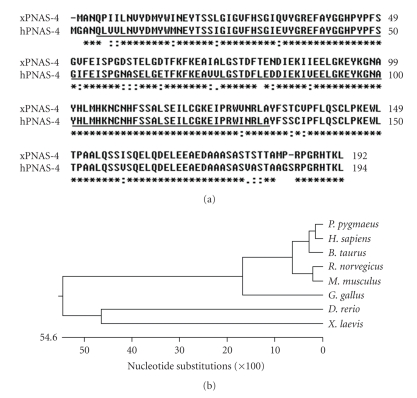

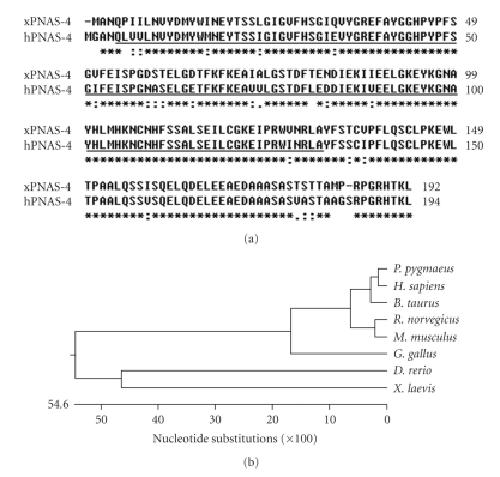

Figure 1. Comparison of the PNAS-4 protein sequence from X. laevis (GenBank protein_id: AAH87412) with those of other species. (a) Alignment of xPNAS-4 and hPNAS-4 protein sequences (GenBank protein_id: NP_057160) showing that they are homologous proteins. There is a DUF862 domain (underlined) in the hPNAS-4 and xPNAS-4 proteins. Asterisks (∗) indicate amino acid residues that are conserved across species. Colons (:) indicate strong similarity between protein xPNAS-4 and hPNAS-4. Dots (·) indicate weak similarity. (b) Phylogenetic tree of the PNAS-4 nucleotide sequences.
Figure 2. Cellular localization, and temporal and spatial expression patterns of xPNAS-4. (a) HEK293 cells were transfected with pEGFP-N1 or pEGFP-N1-xPNAS-4 plasmids as explained in materials and methods. Left: pEGFP-N1 transfected cells (200×); Right: pEGFP-N1-xPNAS-4 transfected cells (200×). (b) Analysis of the temporal expression pattern of xPNAS-4 gene by semiquantitative RT-PCR. ODC: X. laevis ornithine decarboxylase as internal control gene. RT (–): control reverse transcription without template. (c) Whole mount in situ hybridizations showing the spatial expression pattern of xPNAS-4 gene. The upper-left image shows the expression pattern of the xPNAS-4 gene in a stage-2 embryo. The upper-right image shows the expression pattern of the xPNAS-4 gene in a stage-10 embryo (beginning of gastrulation). An ubiquitous expression pattern (purple staining) can be seen. The lower image shows the expression pattern of the xPNAS-4 gene at stage 35. xPNAS-4 transcripts were present in the head, dorsal neural tissue, and prospective heart.
Figure 3. Developmental defects in Xenopus embryos caused by microinjection of xPNAS-4. Embryos were injected once into the dorsal marginal zone at the one-cell stage with 450 pg or 900 pg of xPNAS-4 mRNA. (a) Lateral view of stage 35 tadpoles showing (bottom to top) an unaffected embryo (Wt, bottom); a mildly affected embryo (Lae, middle) and a strongly affected embryo (Sae, upper). Arrows indicate embryos' eyes. (b), (c), and (d) are magnified views from local regions in the pictures. Abbreviations: Wt, wild type; Lae, mildly affected embryo; Sae, strongly affected embryo; My, myotome; Pi, pigment. (e) Dorsal view of an uninjected stage 43 embryo. (f) Dorsal view of stage 43 embryo which was injected with 900 pg of xPNAS-4 mRNA. (g) Graphical representation of the percent of embryos injected with xPNAS-4 mRNA with the small eye phenotype at stage 35 (n = the number of embryos in each group).
Figure 4. Heterologous expression of xPNAS-4 causes eye defects in zebrafish embryos. Embryos were injected at the one-cell stage with 300 pg or 600 pg of xPNAS-4 mRNA. Figures 4(a)–4(f) show embryos at 24 hours post fertilization (hpf). (a) Ventral view of a wild type zebrafish embryo with anterior to the bottom right. (b) Ventral view of a wild type zebrafish embryo with anterior to the top. (c) Lateral view of the normal axis of a wild type embryo. (d) Ventral view of a reduced-eye embryo. Arrow indicates the reduced eye. (e) Ventral view of a one-eyed embryo with anterior to the top. Arrow indicates the lost eye. (f) Lateral view of bent axis defects (arrow) of xPNAS-4 mRNA injected embryo. Figures 4(g)–4(i) show embryos at 48 hpf with anterior to the top. (g) Dorsal view of a wild type zebrafish embryo. (h) Dorsal view of an embryo with a reduced size eye. (i) Dorsal view of a one-eyed embryo. (j) Population of wild type zebrafish embryos at 48 hpf. (k) Population of zebrafish embryos with eye defects at 48 hpf. (l) Quantitative data for eye defects in injected and uninjected zebrafish embryos at 48 hpf. N is the number of embryos examined for each treatment. (m) Whole-mount TUNEL staining of a wild type embryo at 24 hpf. (n) Whole-mount TUNEL staining of an embryo with an eye defect at 24 hpf. A high number of TUNEL-positive cells were detected on the side of injection (black arrow). Dotted circle indicates the developing eyes.
Figure 5. Effect of xPNAS-4 MOs microinjection. (a) Embryos microinjected with 20 ng of xPNAS-4 MO exhibited failure of head development and shortened axis defects (left), but embryos microinjected with 20 ng of control MO embryos were normal (right). (b) The embryos were partially rescued by co-injected with 450 pg of xPNAS-4 mRNA and 20 ng of xPNAS-4 MO (the second row) in comparison with embryos microinjected with 20 ng of xPNAS-4 MO alone (the first row). Better rescue was observed after co-injection of 20 ng of xPNAS-4 MO plus 900 pg of xPNAS-4 mRNA (the third row). The fourth row shows a normal embryo microinjected with 20 ng of control MO. (c) The rate of defective embryos seen in the experiment.
Bassez,
Post-transcriptional regulation of ornithine decarboxylase in Xenopus laevis oocytes.
1990, Pubmed,
Xenbase
Bassez,
Post-transcriptional regulation of ornithine decarboxylase in Xenopus laevis oocytes.
1990,
Pubmed
,
Xenbase Carter,
Loss of XChk1 function triggers apoptosis after the midblastula transition in Xenopus laevis embryos.
2003,
Pubmed
,
Xenbase Choi,
p53 in embryonic development: maintaining a fine balance.
1999,
Pubmed Coucouvanis,
Signals for death and survival: a two-step mechanism for cavitation in the vertebrate embryo.
1995,
Pubmed Donehower,
Mice deficient for p53 are developmentally normal but susceptible to spontaneous tumours.
1992,
Pubmed Glass,
The zebrafish as a model organism for eye development.
2004,
Pubmed Harland,
In situ hybridization: an improved whole-mount method for Xenopus embryos.
1991,
Pubmed
,
Xenbase Hensey,
A developmental timer that regulates apoptosis at the onset of gastrulation.
1997,
Pubmed
,
Xenbase Hou,
Genetic transfer of PNAS-4 induces apoptosis and enhances sensitivity to gemcitabine in lung cancer.
2009,
Pubmed Jacobson,
Programmed cell death in animal development.
1997,
Pubmed Kai,
Overexpression of S-adenosylmethionine decarboxylase (SAMDC) activates the maternal program of apoptosis shortly after MBT in Xenopus embryos.
2000,
Pubmed
,
Xenbase Nakajima,
Structure, expression, and function of the Xenopus laevis caspase family.
2000,
Pubmed
,
Xenbase Newport,
A major developmental transition in early Xenopus embryos: I. characterization and timing of cellular changes at the midblastula stage.
1982,
Pubmed
,
Xenbase Pan,
Altered cell cycle regulation in the lens of HPV-16 E6 or E7 transgenic mice: implications for tumor suppressor gene function in development.
1994,
Pubmed Poelmann,
Apoptosis in cardiac development.
2000,
Pubmed Reichel,
High frequency of persistent hyperplastic primary vitreous and cataracts in p53-deficient mice.
1998,
Pubmed Roth,
Apoptosis and brain development.
2001,
Pubmed Sanders,
The role of mitochondria, cytochrome c and caspase-9 in embryonic lens fibre cell denucleation.
2002,
Pubmed Savill,
Apoptosis and the kidney.
1994,
Pubmed Scavo,
Apoptosis in the development of rat and human fetal lungs.
1998,
Pubmed Thompson,
Apoptosis in the pathogenesis and treatment of disease.
1995,
Pubmed Weber,
The canonical intrinsic mitochondrial death pathway has a non-apoptotic role in signaling lens cell differentiation.
2005,
Pubmed Wride,
Members of the bcl-2 and caspase families regulate nuclear degeneration during chick lens fibre differentiation.
1999,
Pubmed Yabu,
Characterization of zebrafish caspase-3 and induction of apoptosis through ceramide generation in fish fathead minnow tailbud cells and zebrafish embryo.
2001,
Pubmed
,
Xenbase Yan,
A novel pro-apoptosis gene PNAS4 that induces apoptosis in A549 human lung adenocarcinoma cells and inhibits tumor growth in mice.
2009,
Pubmed Yang,
Efficient inhibition of ovarian cancer growth and prolonged survival by transfection with a novel pro-apoptotic gene, hPNAS-4, in a mouse model. In vivo and in vitro results.
2008,
Pubmed Yao,
Pnas4 is a novel regulator for convergence and extension during vertebrate gastrulation.
2008,
Pubmed
