Molecular pathology of the R117H cystic fibrosis mutation is explained by loss of a hydrogen bond.
Simon MA, Csanády L.
???displayArticle.abstract???
The phosphorylation-activated anion channel cystic fibrosis transmembrane conductance regulator (CFTR) is gated by an ATP hydrolysis cycle at its two cytosolic nucleotide-binding domains, and is essential for epithelial salt-water transport. A large number of CFTR mutations cause cystic fibrosis. Since recent breakthrough in targeted pharmacotherapy, CFTR mutants with impaired gating are candidates for stimulation by potentiator drugs. Thus, understanding the molecular pathology of individual mutations has become important. The relatively common R117H mutation affects an extracellular loop, but nevertheless causes a strong gating defect. Here, we identify a hydrogen bond between the side chain of arginine 117 and the backbone carbonyl group of glutamate 1124 in the cryo-electronmicroscopic structure of phosphorylated, ATP-bound CFTR. We address the functional relevance of that interaction for CFTR gating using macroscopic and microscopic inside-out patch-clamp recordings. Employing thermodynamic double-mutant cycles, we systematically track gating-state-dependent changes in the strength of the R117-E1124 interaction. We find that the H-bond is formed only in the open state, but neither in the short-lived 'flickery' nor in the long-lived 'interburst' closed state. Loss of this H-bond explains the strong gating phenotype of the R117H mutant, including robustly shortened burst durations and strongly reduced intraburst open probability. The findings may help targeted potentiator design.
???displayArticle.pubmedLink??? 34870594
???displayArticle.pmcLink??? PMC8673840
???displayArticle.link??? Elife
???displayArticle.grants??? [+]
Horizon 2020 Research and Innovation Program,739593 European Union, Lendület Award,LP2017-14/2017 Magyar Tudományos Akadémia, Research Grant,CSANAD21G0 Cystic Fibrosis Foundation, New National Excellence Program,ÚNKP-20-3-I-SE-34 Ministry for Innovation and Technology, LP2017-14/2017 Magyar Tudományos Akadémia, CSANAD21G0 Cystic Fibrosis Foundation, ÚNKP-20-3-I-SE-34 Ministry for Innovation and Technology, 739593 European Union
Genes referenced: cftr emd
???attribute.lit??? ???displayArticles.show???
|
|
|
|
|
|
|
|
|
|
|
|
|
Figure 1. An H-bond between the R117 side chain and the E1124 backbone carbonyl group is apparent in the quasi-open CFTR structure.(A) Cartoon topology of CFTR and location of target positions (blue and red dot). TMDs, gray; NBD1, blue; NBD2, green; R domain, magenta; membrane, yellow. Orange star denotes catalytic site mutation in the NBD2 Walker B motif. (B–C) Target residues R117 (blue) and E1124 (red) shown in space fill on the cryo-EM structures of (B) inward-facing dephospho-CFTR (pdbid: 5uak) and (C) outward-facing phosphorylated ATP-bound CFTR (pdbid: 6msm). Domain color coding as in A, the R domain is not depicted. (D–E) Close-up views of the extracellular region highlighted in B–C by dotted purple boxes. Target residues are shown as sticks, target distances are illustrated by orange dotted lines.Figure 1—figure supplement 1. Close-up view of the R117-E1124 interaction in the quasi-open human CFTR structure.Electron density (gray mesh, EMD-9230) and atomic model (sticks; pdbid: 6msm) of the ECL6 loop around position 1124 (top and bottom), and of the ECL1 loop around position 117 (bottom). Both loops are well represented, and density for the R117 side chain is visible down to the delta carbon. |
|
Figure 2. Energetic coupling between positions 117 and 1124 changes during non-hydrolytic closure.(A, C) Macroscopic current relaxations following ATP removal for indicated CFTR mutants (color coded) harboring the E1371S background mutation. Inside-out patch currents were activated by exposure of pre-phosphorylated channels to 5 mM ATP. Current amplitudes are shown rescaled by their steady-state values. The gray trace in C illustrates the speed of solution exchange, estimated as the time constant of deactivation (~100 ms) upon Ca2+ removal of the endogenous Ca2+-activated chloride current, evoked by brief exposure to Ca2+. Membrane potential (Vm) was –20 mV. (B, D) Relaxation time constants of the currents in A and C, respectively, obtained by fits to single exponentials. Data are shown as mean ± SEM from 6 to 10 experiments. Note logarithmic ordinate in D. (E) Thermodynamic mutant cycle showing mutation-induced changes in the height of the free enthalpy barrier for the B→IB transition (ΔΔGT++-B0, numbers on arrows; k, Boltzmann’s constant; T, absolute temperature). Each corner is represented by the mutations introduced into positions 117 and 1124 of E1371S-CFTR. ΔΔGint(B→T++)(purple number) is obtained as the difference between ΔΔGT++-B0 values along two parallel sides of the cycle.Figure 2—figure supplement 1. The E1126P mutation slows channel closure.Macroscopic current relaxations following ATP removal for E1371S (black trace) and E1371S-E1126P-CFTR (yellow trace). Inside-out patch currents were activated by ~1 min exposure of pre-phosphorylated channels to 5 mM ATP. Current amplitudes are shown rescaled by their steady-state values. Membrane potential (Vm) was –20 mV. (Inset) Relaxation time constants obtained by fits to single exponentials. Data are shown as mean ± SEM from 6 and 5 experiments, respectively. |
|

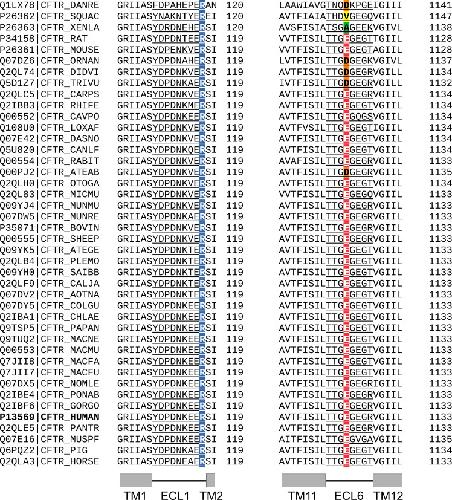

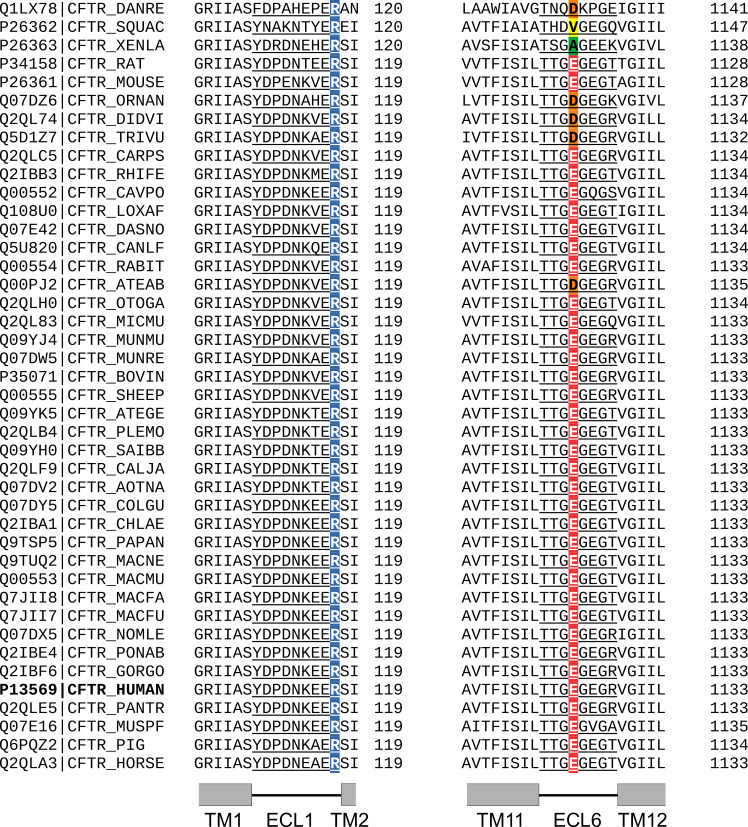

Figure 2—figure supplement 2. Sequence alignment of the ECL1 and ECL6 loops for CFTR orthologs.Segments of a multiple sequence alignment generated by Clustal Omega for CFTR sequences from >40 species. Positions corresponding to human CFTR positions 117 and 1124 are highlighted in blue and red, respectively. The former position is conserved, the latter is not. However, the lengths of both ECL1 and ECL6 are invariable (underlined). |
|
Figure 3. The H-bond between the target positions is formed only in the bursting state.(A) Single-channel currents in 5 mM ATP of indicated CFTR mutants (color coded) harboring the D1370N background (BG) mutation. Channels were pre-phosphorylated by ~1 min exposure to 300 nM PKA +5 mM ATP. Vm was –80 mV. (B, D) Mean burst (B) and interburst (IB) (D) durations obtained by steady-state dwell-time analysis (see Materials and methods). Data are shown as mean ± SEM from five to eight patches; note logarithmic ordinates. (C, E) Thermodynamic mutant cycles showing mutation-induced changes in the height of the free enthalpy barrier for the (C) B→IB and (E) IB→B transition (ΔΔGT++-B0 and ΔΔGT++-IB0, respectively, numbers on arrows; k, Boltzmann’s constant; T, absolute temperature). Each corner is represented by the mutations introduced into positions 117 and 1124 of D1370N-CFTR. ΔΔGint (purple number) is obtained as the difference between ΔΔG0 values along two parallel sides of the cycle. (F) (Top) Free enthalpy profile of the entire channel protein (black curve) and of the 117–1124 interaction (purple curve) along the states of the IB↔B gating process (see Materials and methods). (Bottom) Cartoon representation of channel conformations in the IB, T‡, and B states. Color coding as in Figure 1A; ATP, yellow circles. Blue and red moieties represent the R117 side chain and the E1124 backbone carbonyl group, respectively. Yellow star in state B represents formation of the H-bond.Figure 3—figure supplement 1. All tested constructs in the D1370N background are saturated by 5 mM ATP.(A) Macroscopic current of pre-phosphorylated D1370N CFTR in response to exposure to various concentrations of ATP (bars). (B–E) ATP dose-response curves of the four indicated constructs in the D1370N background. Relative currents were obtained by normalizing the steady-state currents in each test segment to the mean of the steady-state currents during bracketing applications of 10 mM ATP. Each symbol represents mean ± SEM from five experiments. Solid red curves are fits to the Michaelis-Menten equation, K1/2 values are plotted in the panels. |
|

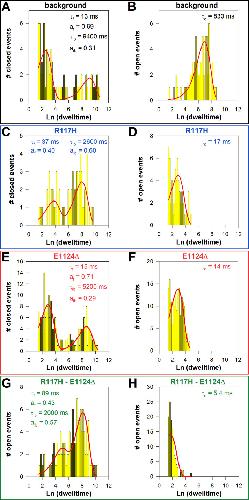

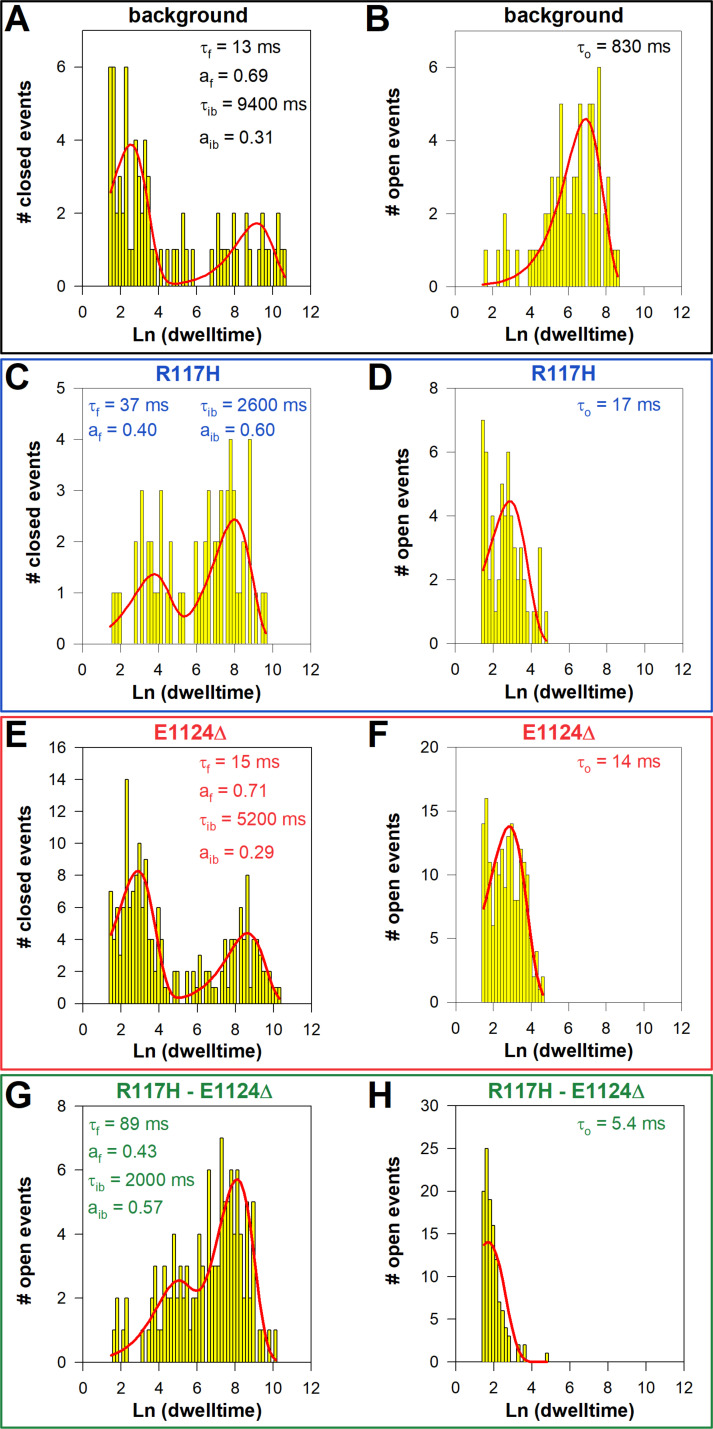

Figure 3—figure supplement 2. Steady-state dwell-time distributions of the target-site mutants in the D1370N background.(A–H) Closed (A, C, E, G) and open (B, D, F, H) dwell-time histograms (Sigworth and Sine, 1987) constructed from the events list of single-channel records for the indicated CFTR mutants in the D1370N background; lower binning limit is 4 ms. Solid red lines are maximum likelihood fits of the dwell times by the Cs↔O↔Cf model (see Materials and methods). Calculated time constants, and for the closed-time histograms the fractional amplitudes (a), are printed in the panels. The two time constants of the closed-time distributions correspond to τinterburst and τflicker, respectively, that of the open-time distribution to τopen. |
|

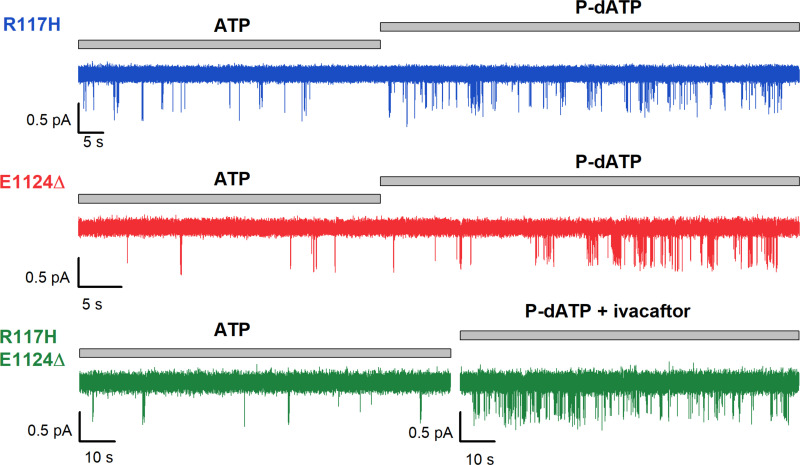

Figure 3—figure supplement 3. Stimulation by P-dATP or P-dATP+ Vx-770 facilitates counting channels for low-Po mutants.Single-channel recordings in 5 mM ATP of the three low-Po mutants in the D1370N background, and robust stimulation of Po by 50 μM N6-(2-phenylethyl)-dATP (P-dATP), with or without 10 nM Vx-770 (ivacaftor). A statistical test based on comparison of the observed opening rate with the cumulative open time (Csanády et al., 2000a) allowed high-confidence exclusion of the presence of a second active channel for each of the three patches shown (p < 0.012, p < 0.03, and p < 0.003, respectively). |
|

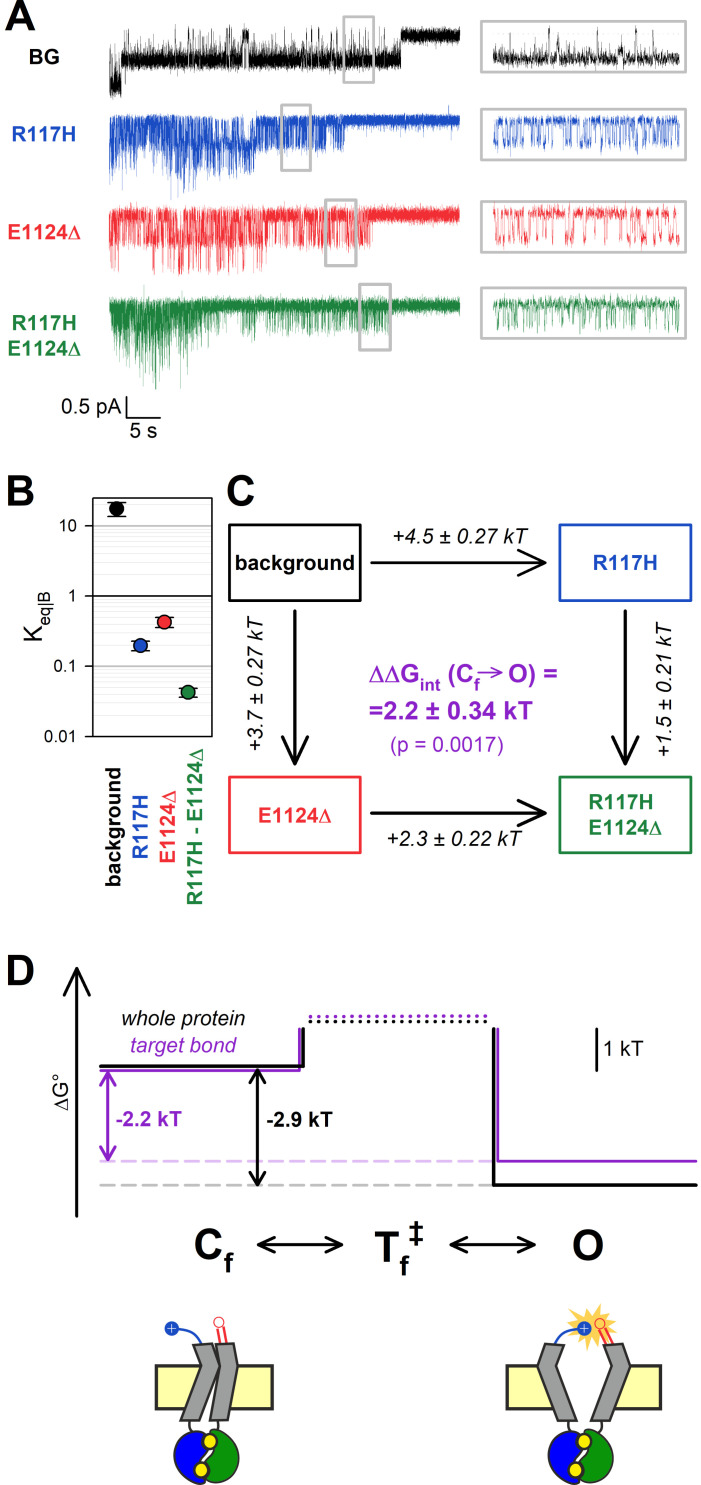

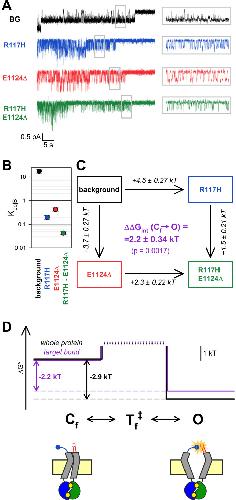

Figure 4. The H-bond between the target positions is broken in the flickery closed state.(A) Currents of last open channels surviving ATP removal, for indicated CFTR mutants (color coded) harboring the E1371S background mutation. Inside-out patch currents were activated by exposure of pre-phosphorylated channels to 5 mM ATP. Insets (right) show 5 s segments corresponding to gray boxes at an expanded time scale. Vm was –80 mV. (B) Closed-open equilibrium constants within a burst (see Materials and methods). Data are shown as mean ± SEM from five to six patches; note logarithmic ordinate. SEM was calculated by error propagation (see Materials and methods). (C) Thermodynamic mutant cycle showing mutation-induced changes in the stability of the O state relative to the Cf state (ΔΔGO-Cf0, numbers on arrows; k, Boltzmann’s constant; T, absolute temperature). Each corner is represented by the mutations introduced into positions 117 and 1124 of E1371S-CFTR. ΔΔGint (purple number) is obtained as the difference between ΔΔG0 values along two parallel sides of the cycle. (D) (Top) Free enthalpy profile of the entire channel protein (black curve) and of the 117–1124 interaction (purple curve) along the states of the intraburst (O↔Cf) gating process (see Materials and methods). (Bottom) Cartoon representation of channel conformations in the Cf and O states. Color coding as in Figure 3F. |
|
Figure 5. Both alternative linear three-state models adequately explain the effects of the mutations.(A–D) Free enthalpy profiles (A–B) of the 117–1124 interaction in D1370N-CFTR, and (C–D) of the entire channel protein for various mutants (color coded) in the D1370N background, along all states of the gating process assuming either the Cs↔O↔Cf (A, C) or the Cs↔Cf↔O (B, D) model. The profiles in (A–B) were obtained from the ΔΔGint values for the four gating steps, those in (C–D) from the microscopic transition rate constants (numbers in s–1, color coded by mutants) obtained by fitting either model to the steady-state recordings in Figure 3A (see Materials and methods). Cartoons in C–D (bottom) represent the channel conformations in the Cs, O, and Cf states. Color coding as in Figure 3F.Figure 5—figure supplement 1. Mutant cycles built on the four microscopic transition rate constants for the two alternative three-state schemes.(A–H) Thermodynamic mutant cycles showing mutation-induced changes in the heights of the free enthalpy barriers (ΔΔG0) for the four microscopic transitions contained in the (A–D) Cs↔O↔Cf or (E–H) Cs↔Cf↔O model, respectively (numbers on arrows; k, Boltzmann’s constant; T, absolute temperature). Each corner is represented by the mutations introduced into positions 117 and 1124 of D1370N-CFTR. ΔΔGint (purple numbers) are obtained as the differences between ΔΔG0 values along two parallel sides of a cycle. Gating steps: A, Cs→O; B, O→Cs; C, O→Cf; D, Cf→O; E, Cs→Cf; F, Cf→Cs; G, Cf→O; H, O→Cf. |
|

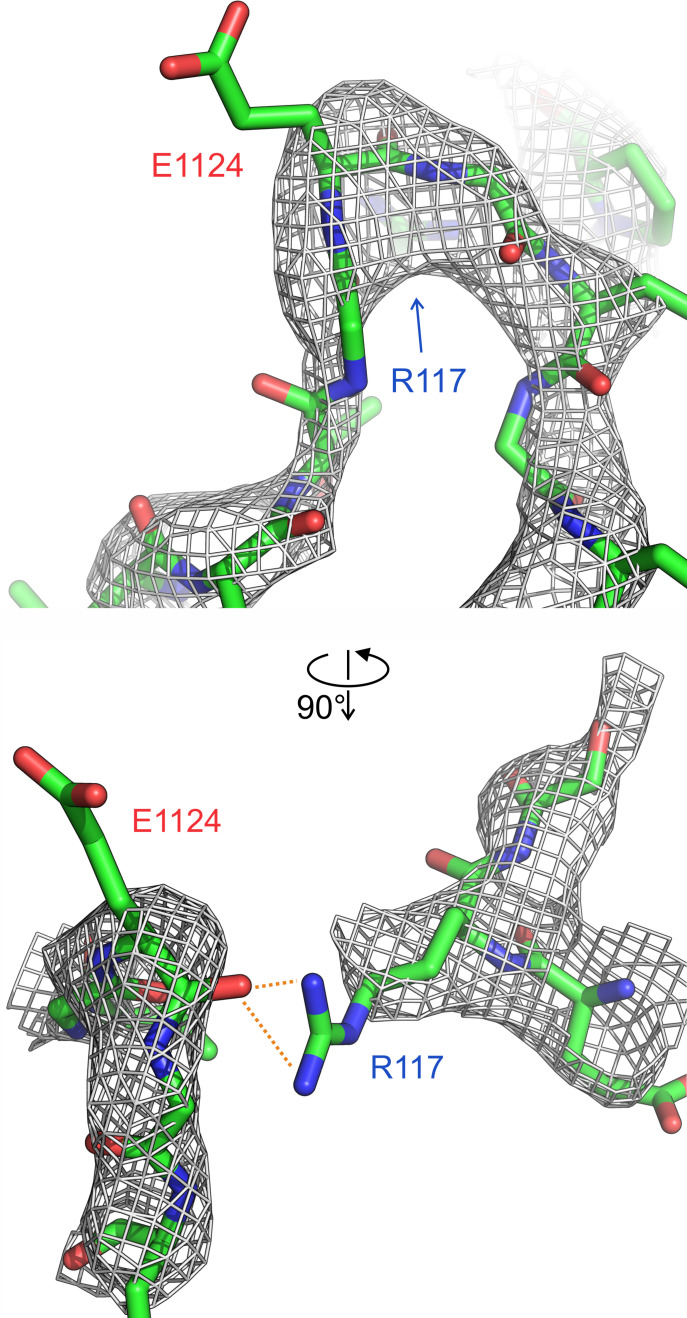

Figure 1—figure supplement 1. Close-up view of the R117-E1124 interaction in the quasi-open human CFTR structure.Electron density (gray mesh, EMD-9230) and atomic model (sticks; pdbid: 6msm) of the ECL6 loop around position 1124 (top and bottom), and of the ECL1 loop around position 117 (bottom). Both loops are well represented, and density for the R117 side chain is visible down to the delta carbon. |
|

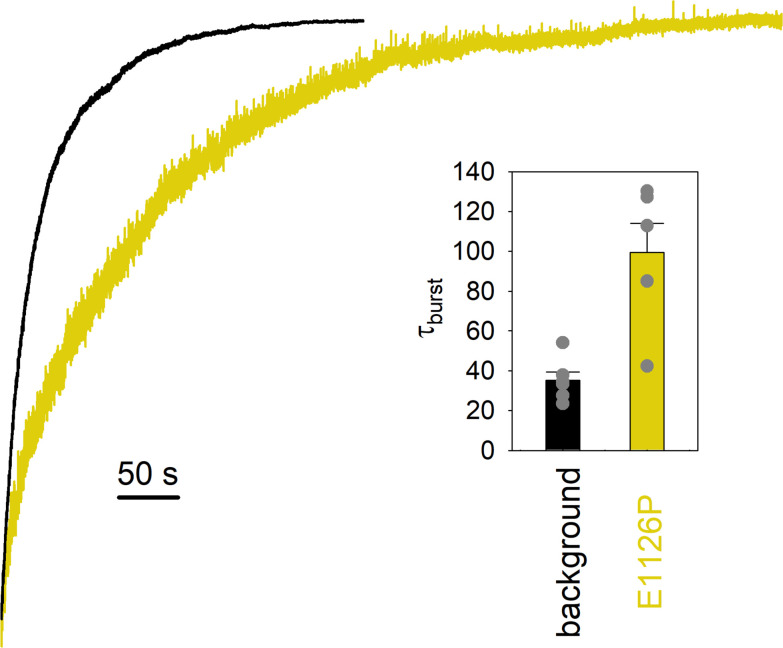

Figure 2—figure supplement 1. The E1126P mutation slows channel closure.Macroscopic current relaxations following ATP removal for E1371S (black trace) and E1371S-E1126P-CFTR (yellow trace). Inside-out patch currents were activated by ~1 min exposure of pre-phosphorylated channels to 5 mM ATP. Current amplitudes are shown rescaled by their steady-state values. Membrane potential (Vm) was –20 mV. (Inset) Relaxation time constants obtained by fits to single exponentials. Data are shown as mean ± SEM from 6 and 5 experiments, respectively. |
|

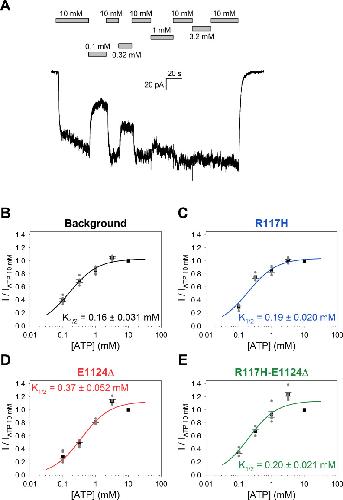

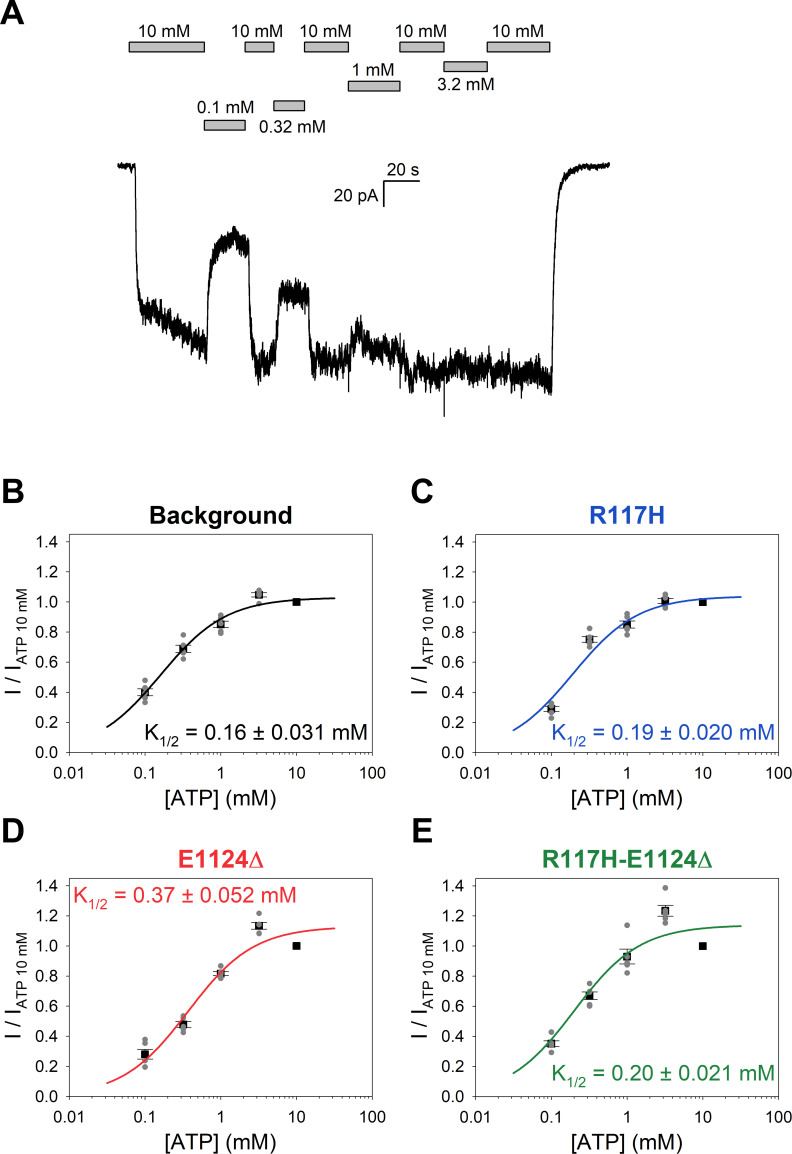

Figure 3—figure supplement 1. All tested constructs in the D1370N background are saturated by 5 mM ATP.(A) Macroscopic current of pre-phosphorylated D1370N CFTR in response to exposure to various concentrations of ATP (bars). (B–E) ATP dose-response curves of the four indicated constructs in the D1370N background. Relative currents were obtained by normalizing the steady-state currents in each test segment to the mean of the steady-state currents during bracketing applications of 10 mM ATP. Each symbol represents mean ± SEM from five experiments. Solid red curves are fits to the Michaelis-Menten equation, K1/2 values are plotted in the panels. |
|

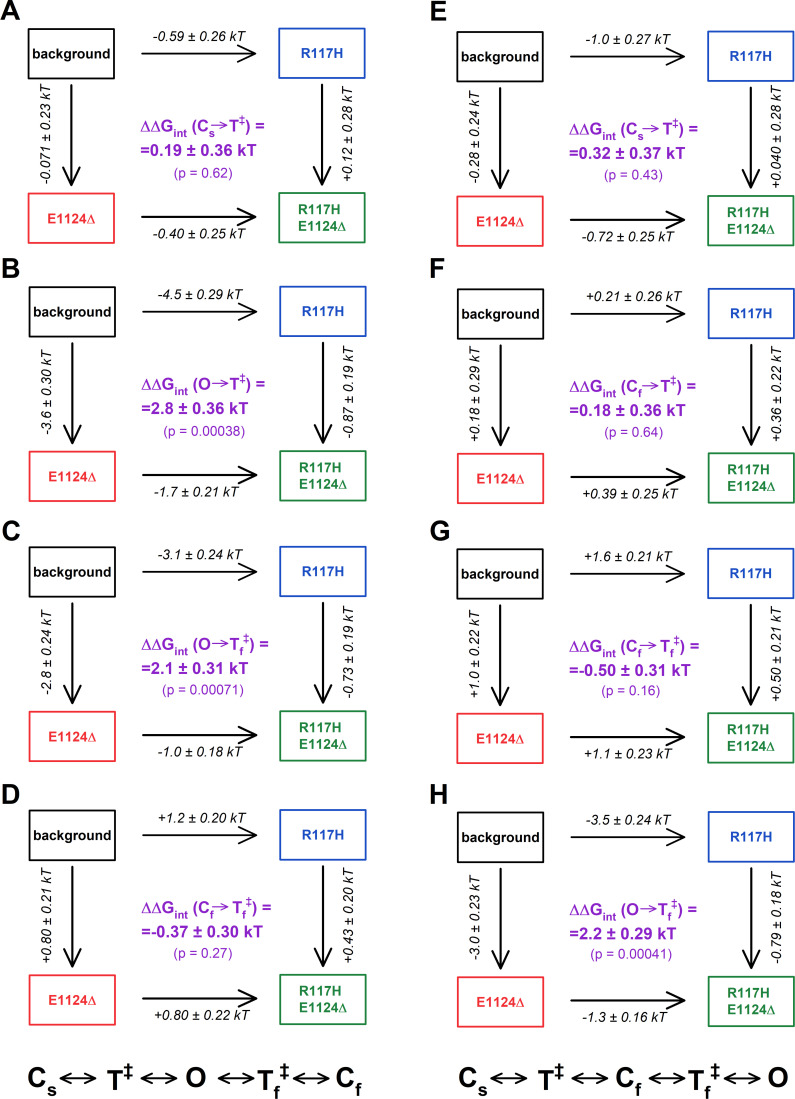

Figure 5—figure supplement 1. Mutant cycles built on the four microscopic transition rate constants for the two alternative three-state schemes.(A–H) Thermodynamic mutant cycles showing mutation-induced changes in the heights of the free enthalpy barriers (ΔΔG0) for the four microscopic transitions contained in the (A–D) Cs↔O↔Cf or (E–H) Cs↔Cf↔O model, respectively (numbers on arrows; k, Boltzmann’s constant; T, absolute temperature). Each corner is represented by the mutations introduced into positions 117 and 1124 of D1370N-CFTR. ΔΔGint (purple numbers) are obtained as the differences between ΔΔG0 values along two parallel sides of a cycle. Gating steps: A, Cs→O; B, O→Cs; C, O→Cf; D, Cf→O; E, Cs→Cf; F, Cf→Cs; G, Cf→O; H, O→Cf. |
