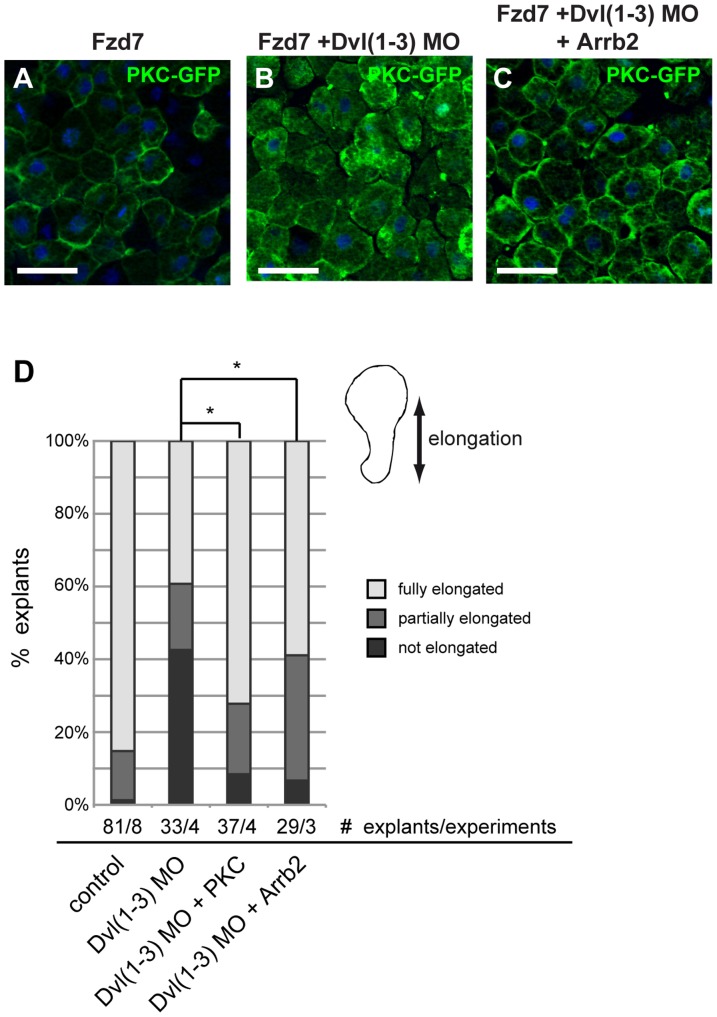

Figure 3. Arrb2 functionally interacts with Dvl in Wnt/Ca2+ signaling.Xenopus embryos were injected with 500 pg pkcα-gfp RNA and co-injected as indicated above the images. Animal Caps were prepared at stage 10 and immunostained as indicated. Nuclei were stained with Hoechst 33258 (blue). Images show representative results from at least two independent experiments with a minimum of six Animal Caps per experiment. Scale bars: 50 µm. Fzd7 induced PKCα-GFP translocation (A) was impaired by a triple knock-down of Dvl1, Dvl2 and Dvl3 (B). (C) Co-expression of Arrb2 partially rescued PKCα-GFP translocation in the triple Dvl knock-down. (D) Triple Dvl knock-down inhibited elongation of Keller open face explants. Co-injection of PCKα or Arrb2 mRNA rescued the CE phenotype of triple Dvl morphant explants. The average percentage of explants showing full (75-100%, light grey), partial (25-50%, medium grey) or no elongation (<25%, dark grey) from at least three independent experiments are shown. Asterisks indicate statistically significant deviations in the percentage of fully elongated explants (* p>0.95, t-test).
Image published in: Seitz K et al. (2014)
Image reproduced on Xenbase with permission of the publisher and the copyright holder. Creative Commons Attribution license
